Mozilla Hackathon 2012

内容

Mozila Hackathon 2012で調べた事と作ったアドオンについて。

https://etherpad.mozilla.org/mozillahackathon2012-extdev

作ったもの

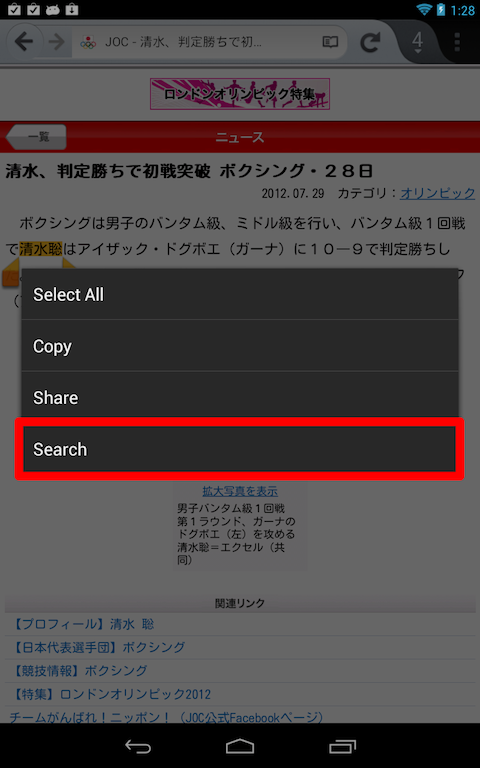

1. 選択した文字列で検索できるようにコンテキストメニューを追加

https://github.com/luckpoint/luckpoint.github.com/blob/master/assets/Mozilla_Hackathon2012/search_contextmenu_addon.xpi

2. 音声検索できるメニューを追加

https://github.com/luckpoint/luckpoint.github.com/blob/master/assets/Mozilla_Hackathon2012/fennec-17.0a1.en-US.android-arm.apk
https://github.com/luckpoint/luckpoint.github.com/blob/master/assets/Mozilla_Hackathon2012/recognize_speech_addon.xpi

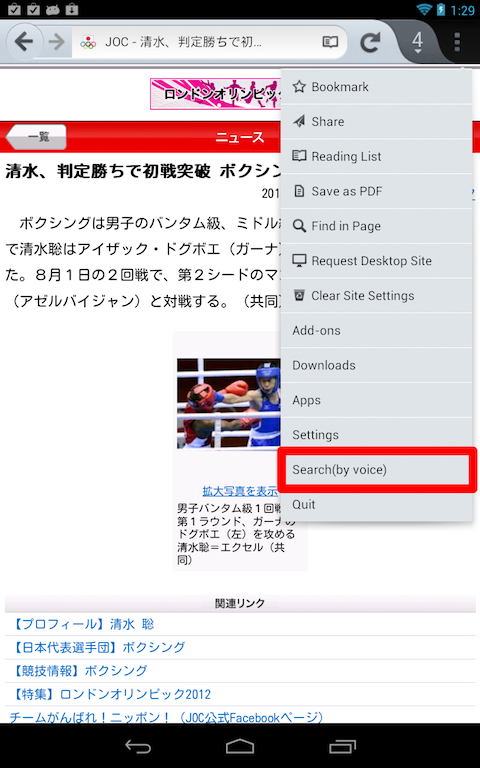

2-1. メニューからSearch(by voice)を選択

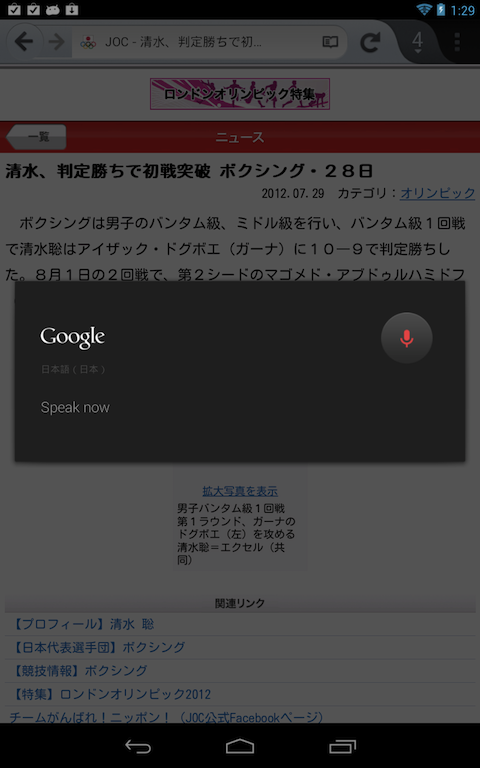

2-2. 音声認識のダイアログが表示されるので、検索したい言葉をしゃべる。

調べた事

1. mobile.jsにいろいろな設定情報がある。

mobile/android/app/mobile.js

// True if you always want dump() to work
//
// On Android, you also need to do the following for the output
// to show up in logcat:
//
// $ adb shell stop
// $ adb shell setprop log.redirect-stdio true
// $ adb shell start
pref("browser.dom.window.dump.enabled", true);

とか。

2. Androidでlogcatにログを表示

log関数

Cu.import("resource://gre/modules/Services.jsm");
function log(s) {
  Services.console.logStringMessage("MyAddon: " + s);
}

ターミナル上で、

adb logcat | grep GeckoConsole

でconsoleのログを表示できる。GeckoAppのタグにも有用なログが流れるため、もう少し範囲を広くして、

adb logcat | grep Gecko

にしておくのもあり。

3. エラーコンソール

chrome://global/content/console.xul

を開く

4. リスタートの方法

let appStartup = Cc["@mozilla.org/toolkit/app-startup;1"].getService(Ci.nsIAppStartup);
appStartup.quit(Ci.nsIAppStartup.eRestart | Ci.nsIAppStartup.eAttemptQuit);

5. アドオン側とアプリ側とのメッセージのやりとり

mobile/andrid/base/GeckoApp.java

org.mozilla.gecko.GeckoApp
public void handleMessage(String event, JSONObject message) {

アドオンからメッセージをJava側にメッセージを投げると、ここでハンドリングされるよう。

function getBridge() {
  return Cc["@mozilla.org/android/bridge;1"].getService(Ci.nsIAndroidBridge);
}

function sendMessageToJava(aMessage) {
  return getBridge().handleGeckoMessage(JSON.stringify(aMessage));
}

sendMessageToJava({
  gecko: {
    type: "Share:Image",
    url: src,
    mime: type,
  }
});

6. Firefox Android版のビルド

hg pull; hg updateで最新を取得。
autoconf 2.13のインストール ** client.mk:263: *** Could not find autoconf 2.13. のエラー ** https://gist.github.com/1010716 をベースにhomeblewでいれた。
webmのためにYASMのインストール https://developer.mozilla.org/en/YASM
Compile Error

nsNPAPIPluginInstance.cpp:138:14: error: cannot convert ‘std::nullptr_t’ to ‘mozilla::gl::SharedTextureHandle {aka unsigned int}’ in return

とりあえず、nunullを使用せずに0に置き換える。

Link Error https://bugzilla.mozilla.org/show_bug.cgi?id=776489 と同様のエラーが発生

jsutil.cpp:57: error: undefined reference to ‘deflateInit_’

bugzillaにあった関係しそうな ac_add_options –with-system-zlib をmozconfigに入れてもdistcleanしてもエラーが解消できず。 –> zlib系はコメントアウトでとりあえず対応。

7. 音声認識の呼び出し

Recognize:Speechというメッセージで音声認識を呼び出す

bootstrap.js:

function getBridge() {
  return Cc["@mozilla.org/android/bridge;1"].getService(Ci.nsIAndroidBridge);
}
function sendMessageToJava(aMessage) {
  return getBridge().handleGeckoMessage(JSON.stringify(aMessage));
}
sendMessageToJava({
   gecko: {
     type: "Recognize:Speech"
   }
});

GeckoApp#initialize

GeckoAppShell.registerGeckoEventListener("Recognize:Speech", GeckoApp.mAppContext);

GeckoApp#handleMessage:

 // Added For Handling of RecognizerIntent.
 else if (event.equals("Recognize:Speech")) {
     final Intent intent = new Intent(RecognizerIntent.ACTION_RECOGNIZE_SPEECH);
     final int requestCode = GeckoAppShell.sActivityHelper.makeRequestCodeForRecognizeSpeech();
     startActivityForResult(intent, requestCode);
}

ActivityHandlerHelper:

 private final ActivityResultHandler mRecognizeSppechResultHandler = new ActivityResultHandler() {
     @Override
     public void onActivityResult(int resultCode, Intent data) {
         if (resultCode == Activity.RESULT_OK) {
             final ArrayList<String> results = data.getStringArrayListExtra(RecognizerIntent.EXTRA_RESULTS);
             Log.e(LOGTAG, "mRecognizeSppechResultHandler2: " + results.size());
             if (results.size() > 0) {
                 GeckoApp.mAppContext.loadRequest(results.get(0), AwesomeBar.Target.CURRENT_TAB, "Google", false);
             }
         }
     }
 };

今回の修正

diff -r 08428deb1e89 dom/plugins/base/nsNPAPIPluginInstance.cpp
--- a/dom/plugins/base/nsNPAPIPluginInstance.cpp    Thu Jul 26 12:36:15 2012 -0700
+++ b/dom/plugins/base/nsNPAPIPluginInstance.cpp    Sun Jul 29 13:19:43 2012 +0900
@@ -96,7 +96,7 @@
   ~SharedPluginTexture()
   {
     // This will be destroyed in the compositor (as it normally is)
-    mCurrentHandle = nsnull;
+    mCurrentHandle = 0;//nsnull;
   }

   TextureInfo Lock()
@@ -130,12 +130,12 @@
       return mCurrentHandle;

     if (!EnsureGLContext())
-      return nsnull;
+      return 0;//nsnull;

     mNeedNewImage = false;

     if (mTextureInfo.mWidth == 0 || mTextureInfo.mHeight == 0)
-      return nsnull;
+      return 0;//nsnull;

     mCurrentHandle = sPluginContext->CreateSharedHandle(TextureImage::ThreadShared, (void*)mTextureInfo.mTexture, GLContext::TextureID);

@@ -1022,7 +1022,7 @@
   } else if (mContentSurface) {
     EnsureGLContext();
     return sPluginContext->CreateSharedHandle(TextureImage::ThreadShared, mContentSurface, GLContext::SurfaceTexture);
-  } else return nsnull;
+  } else return 0;//nsnull;
 }

 void* nsNPAPIPluginInstance::AcquireVideoWindow()
diff -r 08428deb1e89 js/src/jsutil.cpp
--- a/js/src/jsutil.cpp Thu Jul 26 12:36:15 2012 -0700
+++ b/js/src/jsutil.cpp Sun Jul 29 13:19:43 2012 +0900
@@ -25,18 +25,18 @@

 #include "zlib.h"

-using namespace js;
+//using namespace js;

 static void *
 zlib_alloc(void *cx, uInt items, uInt size)
 {
-    return OffTheBooks::malloc_(items * size);
+    return js::OffTheBooks::malloc_(items * size);
 }

 static void
 zlib_free(void *cx, void *addr)
 {
-    Foreground::free_(addr);
+    js::Foreground::free_(addr);
 }


@@ -54,16 +54,16 @@
     zs.avail_in = inplen;
     zs.next_out = out;
     zs.avail_out = inplen;
-    int ret = deflateInit(&zs, Z_BEST_SPEED);
-    if (ret != Z_OK) {
-        JS_ASSERT(ret == Z_MEM_ERROR);
-        return false;
-    }
-    ret = deflate(&zs, Z_FINISH);
-    DebugOnly<int> ret2 = deflateEnd(&zs);
-    JS_ASSERT(ret2 == Z_OK);
-    if (ret != Z_STREAM_END)
-        return false;
+    //int ret = deflateInit(&zs, Z_BEST_SPEED);
+    //if (ret != Z_OK) {
+    //    JS_ASSERT(ret == Z_MEM_ERROR);
+    //    return false;
+    //}
+    //ret = deflate(&zs, Z_FINISH);
+    //DebugOnly<int> ret2 = deflateEnd(&zs);
+    //JS_ASSERT(ret2 == Z_OK);
+    //if (ret != Z_STREAM_END)
+    //    return false;
     *outlen = inplen - zs.avail_out;
     return true;
 }
@@ -81,14 +81,14 @@
     zs.next_out = out;
     JS_ASSERT(outlen);
     zs.avail_out = outlen;
-    int ret = inflateInit(&zs);
-    if (ret != Z_OK) {
-      JS_ASSERT(ret == Z_MEM_ERROR);
-      return false;
-    }
-    ret = inflate(&zs, Z_FINISH);
-    JS_ASSERT(ret == Z_STREAM_END);
-    ret = inflateEnd(&zs);
+    //int ret = inflateInit(&zs);
+    //if (ret != Z_OK) {
+    //  JS_ASSERT(ret == Z_MEM_ERROR);
+    //  return false;
+    //}
+    //ret = inflate(&zs, Z_FINISH);
+    //JS_ASSERT(ret == Z_STREAM_END);
+    //ret = inflateEnd(&zs);
     JS_ASSERT(ret == Z_OK);
     return true;
 }
diff -r 08428deb1e89 mobile/android/base/ActivityHandlerHelper.java
--- a/mobile/android/base/ActivityHandlerHelper.java    Thu Jul 26 12:36:15 2012 -0700
+++ b/mobile/android/base/ActivityHandlerHelper.java    Sun Jul 29 13:19:43 2012 +0900
@@ -21,6 +21,7 @@
 import android.os.Environment;
 import android.provider.MediaStore;
 import android.util.Log;
+import android.speech.*;

 class ActivityHandlerHelper {
     private static final String LOGTAG = "GeckoActivityHandlerHelper";
@@ -33,6 +34,20 @@
     private final CameraImageResultHandler mCameraImageResultHandler;
     private final CameraVideoResultHandler mCameraVideoResultHandler;

+    private final ActivityResultHandler mRecognizeSppechResultHandler = new ActivityResultHandler() {
+        @Override
+        public void onActivityResult(int resultCode, Intent data) {
+            Log.e(LOGTAG, "mRecognizeSppechResultHandler: " + resultCode);
+            if (resultCode == Activity.RESULT_OK) {
+                final ArrayList<String> results = data.getStringArrayListExtra(RecognizerIntent.EXTRA_RESULTS);
+                Log.e(LOGTAG, "mRecognizeSppechResultHandler2: " + results.size());
+                if (results.size() > 0) {
+                    GeckoApp.mAppContext.loadRequest(results.get(0), AwesomeBar.Target.CURRENT_TAB, "Google", false);
+                }
+            }
+        }
+    };
+
     ActivityHandlerHelper() {
         mFilePickerResult = new SynchronousQueue<String>();
         mActivityResultHandlerMap = new ActivityResultHandlerMap();
@@ -46,6 +61,10 @@
         return mActivityResultHandlerMap.put(mAwesomebarResultHandler);
     }

+    int makeRequestCodeForRecognizeSpeech() {
+        return mActivityResultHandlerMap.put(mRecognizeSppechResultHandler);
+    }
+
     private int addIntentActivitiesToList(Context context, Intent intent, ArrayList<PromptService.PromptListItem> items, ArrayList<Intent> aIntents) {
         PackageManager pm = context.getPackageManager();
         List<ResolveInfo> lri = pm.queryIntentActivityOptions(GeckoApp.mAppContext.getComponentName(), null, intent, 0);
diff -r 08428deb1e89 mobile/android/base/GeckoApp.java
--- a/mobile/android/base/GeckoApp.java Thu Jul 26 12:36:15 2012 -0700
+++ b/mobile/android/base/GeckoApp.java Sun Jul 29 13:19:43 2012 +0900
@@ -50,6 +50,7 @@
 import android.provider.*;
 import android.content.pm.*;
 import android.content.pm.PackageManager.*;
+import android.speech.*;
 import dalvik.system.*;

 abstract public class GeckoApp
@@ -1096,7 +1097,14 @@
                 GeckoAppShell.shareImage(src, type);
             } else if (event.equals("Sanitize:ClearHistory")) {
                 handleClearHistory();
+            }
+            // Added For Handling of RecognizerIntent.
+            else if (event.equals("Recognize:Speech")) {
+                final Intent intent = new Intent(RecognizerIntent.ACTION_RECOGNIZE_SPEECH);
+                final int requestCode = GeckoAppShell.sActivityHelper.makeRequestCodeForRecognizeSpeech();
+                startActivityForResult(intent, requestCode);
             }
+
         } catch (Exception e) {
             Log.e(LOGTAG, "Exception handling message \"" + event + "\":", e);
         }
@@ -1727,6 +1735,7 @@
         GeckoAppShell.registerGeckoEventListener("Share:Text", GeckoApp.mAppContext);
         GeckoAppShell.registerGeckoEventListener("Share:Image", GeckoApp.mAppContext);
         GeckoAppShell.registerGeckoEventListener("Sanitize:ClearHistory", GeckoApp.mAppContext);
+        GeckoAppShell.registerGeckoEventListener("Recognize:Speech", GeckoApp.mAppContext);

         if (SmsManager.getInstance() != null) {
           SmsManager.getInstance().start();
